The Rollover standard program makes it easy to find the right model for your needs. What differs the various options is basically the size of the glass bed working area. Unlike most competitors, we have included as standard several properties normally found as optional features at a surcharge. By asking yourself the following questions, you will be able to find the model reflecting the needs of your business:

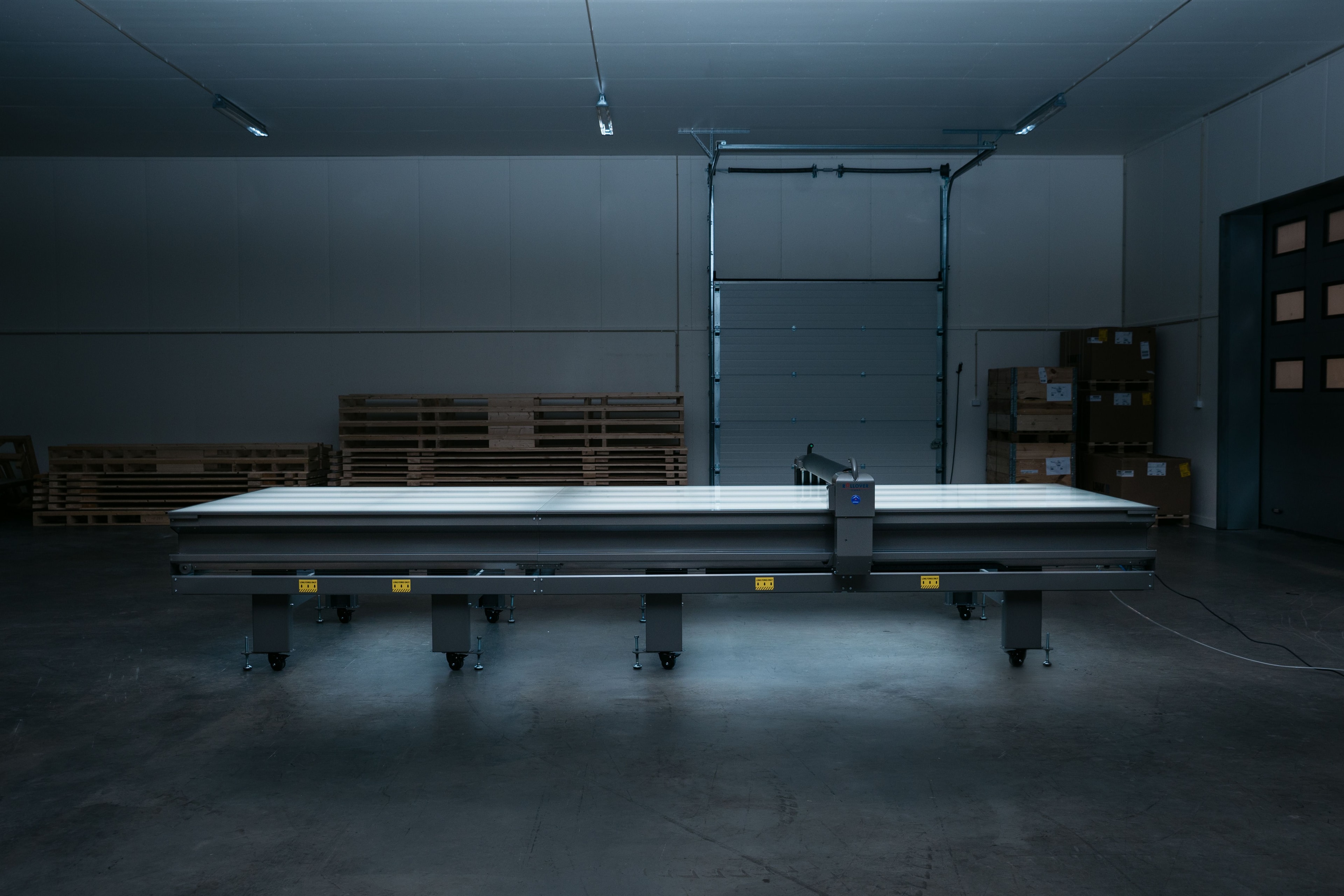

Rollover Classic sizes are based on 3,36m and 4,0m units of 1,70m width. By combining these, the standard assortment effectively also includes 6,72m and 8m models.
| Key Features | |
|---|---|
| Inward facing and protected activation switch – simplifies and safeguards the applications | |

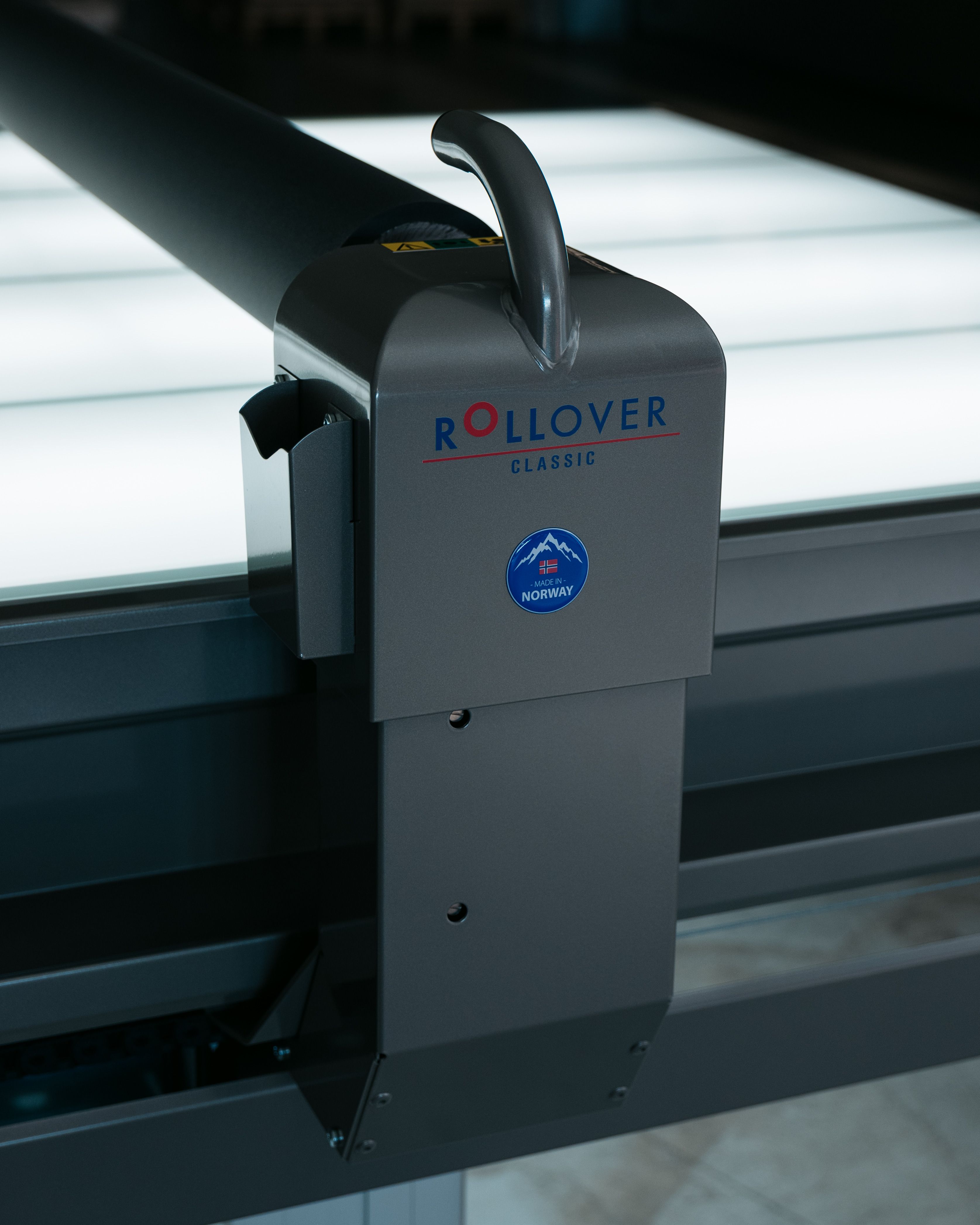

| Ergonomic handles enable one-hand roller operation for better efficiency and ergonomy | |
| Rounded housings – no sharp edges | |
| Free view to roller – no blocking tower or gantry | |
| Unobstructed access to the roller, media and the work surface | |
| Sidetrays for large formats on both sides | |
| Brackets/spindles for handling of media rolls and application tape from both table ends and roller housings | |
| Integrated air pressure gauge | |
| Self-healing cutting mat | |
| Illuminated glass bed(LED) | |
| Castors | |
| Tool pockets on each housing | |
| Separate outlet for air gun connection | |
| Handy holders for media spindles/brackets are mounted at the short end of the table |
| Optional Features | |
|---|---|
| Height Adjustable Legs – electrically driven 80cm/33,4’’ – 110cm/43,2’’ | |
| Twin rollers | |
| Heat Assisted Roller 30’C/86’F – 65’C/149’F | |
| Extended gap between roller and glass bed | |
| read more... | |
| Key Data | |
|---|---|
| Steel edge outside glassbed | Add 3 cm on each side |
| Max.thickness of sign substrate in cm | 8,5cm/85mm/3,34’’ |
| Gap between steel edge and console* | 7.5 cm |
| Work height glass bed | 90cm/35,4’’ (Standard Legs) |
| Power supply | 230v/50Hz – 120V/60Hz |
| * Available space for large formats placed in the side trays. | |
| Model size in cm | Glass bed working area in cm | Working area of roller in cm | Roller diameter in cm | Approx. weight in kg | Illumination, LED |
|---|---|---|---|---|---|
| 170 x 336 | 170 x 336 | 170 x 306 | 13 | 530 | 175W |
| 170 x 400 | 170 x 400 | 170 x 370 | 13 | 650 | 210W |
| 170 x 672 | 170 x 672 | 170 x 612 | 13 | 990 | 350W |
| 170 x 800 | 170 x 800 | 170 x 770 | 13 | 1230 | 420W |
| Key Data | |
|---|---|
| Steel edge outside glassbed | Add 30 mm on each side |
| Max.thickness of sign substrate in mm | 90 mm |
| Gap between steel edge and console* | 75 mm |
| Work height glass bed | 900 mm |
| Power supply | 230v/50Hz – 120V/60Hz |
| * Available space for large formats placed in the side trays. | |
| Model size in mm | Glass bed working area in mm | Working area of roller in mm | Roller diameter in mm | Approx. weight in kg | Illumination, LED |
|---|---|---|---|---|---|
| 1700 x 3360 | 1700 x 3360 | 1700 x 3060 | 130 | 530 | 175W |
| 1700 x 4000 | 1700 x 4000 | 1700 x 3700 | 130 | 650 | 210W |
| 1700 x 6720 | 1700 x 6720 | 1700 x 6120 | 130 | 990 | 350W |
| 1700 x 8000 | 1700 x 8000 | 1700 x 7700 | 130 | 1230 | 420W |
| Key Data | |
|---|---|
| Steel edge outside glassbed | Add 0' 1" ft-inch on each side |
| Max.thickness of sign substrate in ft-inch | 0' 4" ft-inch |
| Gap between steel edge and console* | 0' 2" ft-inch |
| Work height glass bed | 3' 0" ft-inch |
| Power supply | 230v/50Hz – 120V/60Hz |
| * Available space for large formats placed in the side trays. | |
| Model size in ft-inch | Glass bed working area in ft-inch | Working area of roller in ft-inch | Roller diameter in ft-inch | Approx. weight in kg | Illumination, LED |
|---|---|---|---|---|---|
| 5' 6" x 11' 1" | 5' 6" x 11' 1" | 5' 6" x 10' 1" | 0' 5" | 530 | 175W |
| 5' 6" x 13' 2" | 5' 6" x 13' 2" | 5' 6" x 12' 2" | 0' 5" | 650 | 210W |
| 5' 6" x 22' 1" | 5' 6" x 22' 1" | 5' 6" x 20' 1" | 0' 5" | 990 | 350W |
| 5' 6" x 26' 3" | 5' 6" x 26' 3" | 5' 6" x 25' 3" | 0' 5" | 1230 | 420W |
