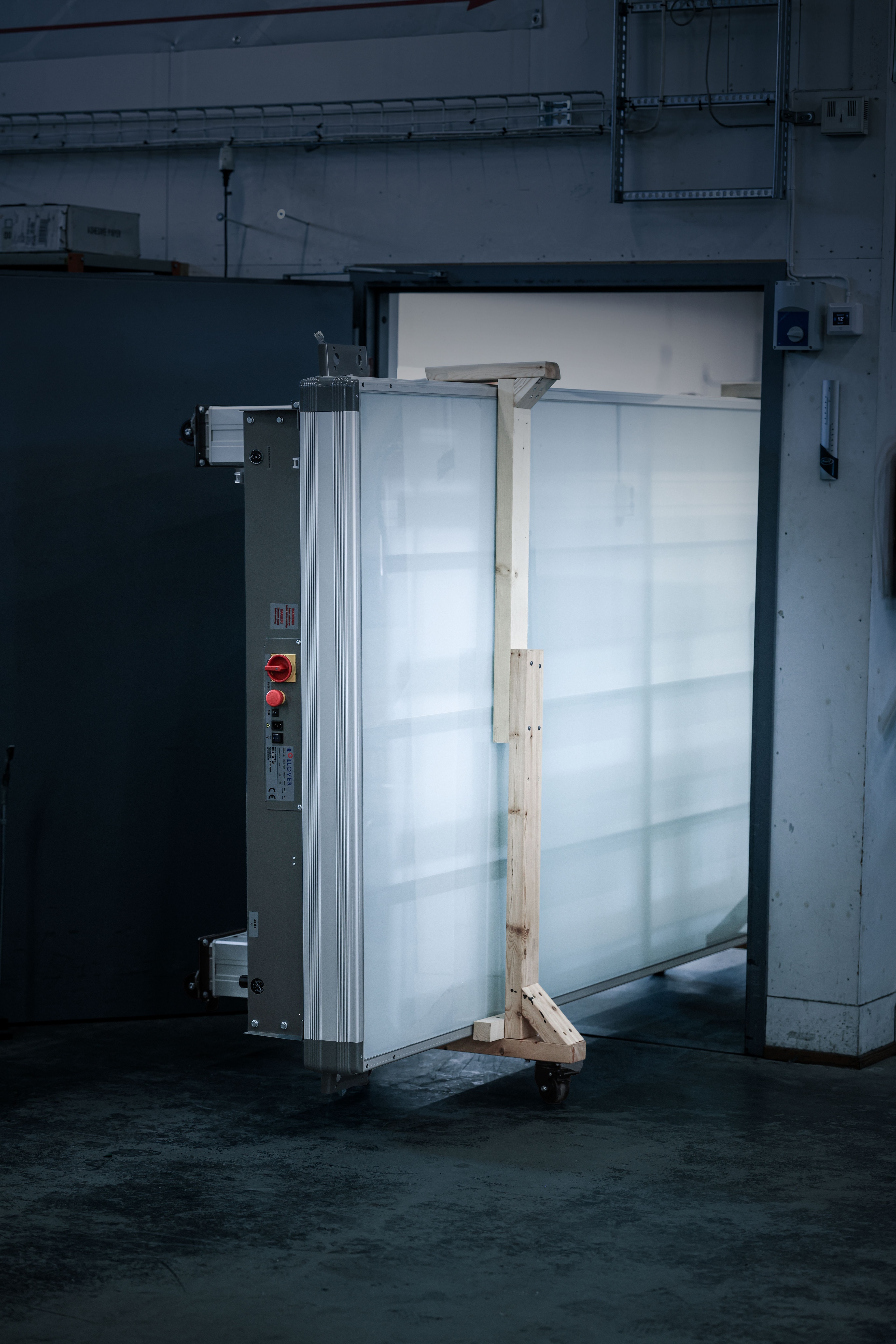

Rollover Flexi represents the latest, flexible addition to the Rollover Range. Comprising all the essential qualities of the extensive line of Classic Flatbed Applicators, these units also offer quick dismantling to facilitate entering of premises having difficult access. These Flexi Models reflect our well-known high level of quality, craftsmanship and durability. Having no overhead gantry above the roller, the access to media and substrates while working is superior.
| Key Features | |
|---|---|
| Inward facing and protected activation switch – simplifies and safeguards the applications | |
| Ergonomic handles enable one-hand roller operation for better efficiency and ergonomy | |
| Rounded housings – no sharp edges | |
| Free view to roller – no blocking tower or gantry | |
| Unobstructed access to the roller, media and the work surface | |
| Brackets/spindles for handling of media rolls and application tape from both table ends and roller housings | |
| Extended gap between roller and glass bed | |
| Self-healing cutting mat | |
| Illuminated glass bed(LED) | |
| Castors | |
| Integrated air pressure gauge | |
| Tool pockets on each housing | |
| Separate outlet for air gun connection | |
| Handy holders for media spindles/brackets are mounted at the short end of the table | |
| Longside Cutter Guide – makes straight cutting of Media and Substrates much easier. |
| Optional Features | |
|---|---|
| Height adjustable legs | |
| Heat assisted roller 30’C – 55’C | |
| Extended Gap between Roller and Glass bed | |
| read more... | |
| Key Data | |
|---|---|
| Steel edge outside glassbed | Add 3 cm on each side |
| Max.thickness of sign substrate in cm | 6.5 cm |
| Gap between steel edge and console* | 7.5 cm |
| Work height glass bed | 90 cm |
| Power supply | 230v/50Hz – 120V/60Hz |
| * Available space for large formats placed in the side trays. | |
| Model size in cm | Glass bed working area in cm | Working area of roller in cm | Approx. weight in kg | Illumination, LED |
|---|---|---|---|---|
| 140 x 286 | 140 x 286 | 140 x 256 | 390 | 127W |
| 155 x 336 | 155 x 336 | 155 x 306 | 450 | 175W |
| Key Data | |
|---|---|
| Steel edge outside glassbed | Add 30 mm on each side |
| Max.thickness of sign substrate in mm | 65 mm |
| Gap between steel edge and console* | 75 mm |
| Work height glass bed | 900 mm |
| Power supply | 230v/50Hz – 120V/60Hz |
| * Available space for large formats placed in the side trays. | |
| Model size in mm | Glass bed working area in mm | Working area of roller in mm | Approx. weight in kg | Illumination, LED |
|---|---|---|---|---|
| 1400 x 2860 | 1400 x 2860 | 1400 x 2560 | 390 | 127W |
| 1550 x 3360 | 1550 x 3360 | 1550 x 3060 | 450 | 175W |
| Key Data | |
|---|---|
| Steel edge outside glassbed | Add 0' 1" ft-inch on each side |
| Max.thickness of sign substrate in ft-inch | 0' 21" ft-inch |
| Gap between steel edge and console* | 0' 2" ft-inch |
| Work height glass bed | 3' 0" ft-inch |
| Power supply | 230v/50Hz – 120V/60Hz |
| * Available space for large formats placed in the side trays. | |
| Model size in ft-inch | Glass bed working area in ft-inch | Working area of roller in ft-inch | Approx. weight in kg | Illumination, LED |
|---|---|---|---|---|
| 4' 6" x 9' 4" | 4' 6" x 9' 4" | 4' 6" x 8' 4" | 390 | 127W |
| 5' 1" x 11' 1" | 5' 1" x 11' 1" | 5' 1" x 10' 1" | 450 | 175W |
